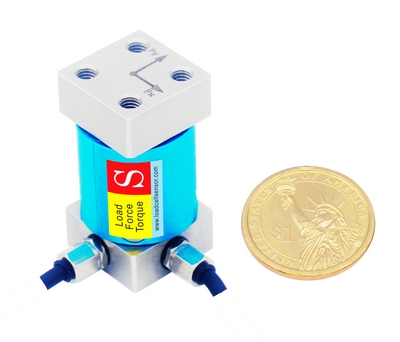

The LCM2A miniature biaxial load cell is engineered for accurate two-dimensional force measurement in applications where installation space is limited. Available in eight rated capacities from 10N to 1kN, it measures both tensile and compressive forces along two perpendicular axes, Fx and Fy. Each axis provides a stable analog mV output that is linearly proportional to the applied force, enabling precise real-time force monitoring. When used with a compatible signal conditioner, the LCM2A 2-axis load cell can provide standard outputs including 0–5V, 0–10V, and 4–20mA for convenient connection to PLCs, data acquisition systems, and industrial control equipment.

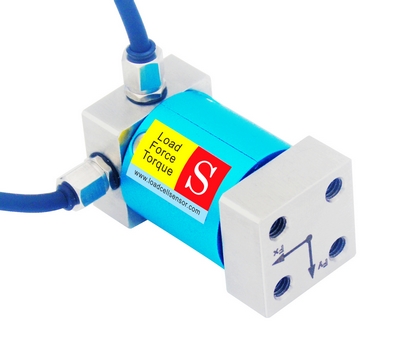

With its compact flanged construction, the LCM2A compact 2-axis force sensor is designed for secure installation while maintaining reliable force transmission in confined spaces. One flange is used for mounting, while the opposite flange serves as the force application interface, helping maintain stable measurement performance. It is well suited for robotics, precision automation, material testing, mechanical testing, and other applications requiring planar force monitoring and multi-axis control. Its small footprint and bidirectional sensing capability make this small size 2D load cell an efficient solution for systems that require accurate Fx and Fy measurement without sacrificing valuable installation space.
