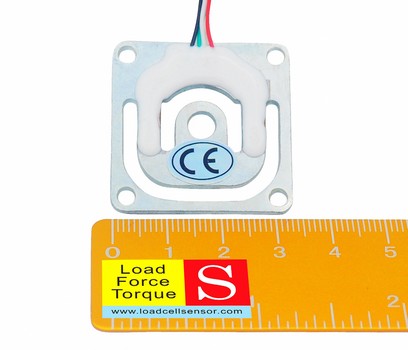

Low Profile Load Cell LCA01 is made from alloy steel utilizes planar beam structure with 10kg, 30kg, 50kg and 100kg four rated capacities to choose from. Based on proven strain gauge technology, flat plate force sensor LCA01 delivers less than 0.1% full scale non-linearity error, consisting of a Wheatstone full bridge with 1000 ohms resistance, weight transducer LCA01 consumes less power than common 350 ohms loadcells. The four through holes around the transducer can be used to mount the loadcell to a solid surface, while the central 5.1mm thru hole can be used to mount accessories to load the sensor in both traction and compression direction. The ultra-thin load cell LCA01 offers a perfect solution for applications where height space is at a premium. Very compact design, easy to install, bi-directional force measurement, high accuracy, affordable price, thin force sensor LCA01 is ideally suited for applications such as robotics, force simulator and automation process control.
