Miniature Force Sensor 50N 100N 200N 500N 1000N Tension/Compression Load Cell
 Miniature Force Sensor 50N 100N 200N 500N 1000N Tension/Compression Load Cell  Miniature Force Sensor 50N 100N 200N 500N 1000N Tension/Compression Load Cell

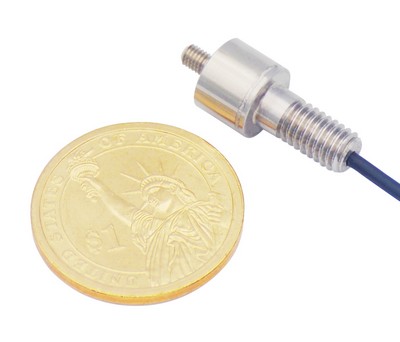

Miniature in-line load cell LCR1A is designed with an M6 threaded rod on one end of the transducer and an M3 threaded rod on the other end. Rated capacities available are 50N, 100N, 200N, 500N and 1000N, suitable for both tension and compression force measurement. Force transducer LCR1A is constructed from stainless steel with low nominal deformation, applicable for both static and dynamic force measurement. Very compact size with only 10mm OD, the cable is led out from the center of the M6 thread, mini force sensor LCR1A provides an ideal solution for inline applications where space is at a premium. For special measuring tasks, customers can contact us for customized solutions.
