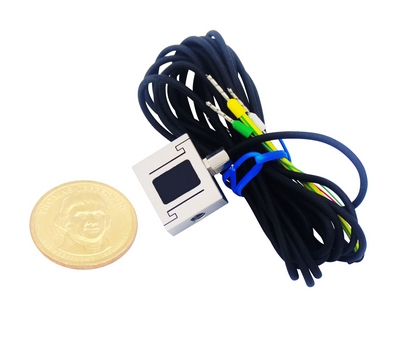

The LCS03 Miniature S-Beam Jr. Load Cell is a compact, high-precision force measurement sensor designed for both tension and compression applications where installation space is at a premium. Built from high-quality stainless steel and utilizing proven strain gauge technology, the LCS03 offers long-term durability, superior accuracy, and stable performance even in demanding environments. It features a 500-ohm Wheatstone full bridge circuit, which provides notably lower power consumption and reduced heat generation compared to traditional 350-ohm sensors. This design minimizes signal drift during extended operation, ensuring consistent and reliable force measurement results. For users seeking even greater energy efficiency, an upgraded 1000-ohm bridge configuration is available upon request.

The push pull force sensor LCS03 is offered in multiple rated capacities—5 kg, 10 kg, 20 kg, 30 kg, and 50 kg—and achieves exceptional precision with non-linearity less than 0.1% of full scale and resolution up to 0.02% of rated output. Both ends of the sensor include M4 threaded holes for easy mechanical integration with fixtures such as eye bolts, threaded rods, and loading adaptors, supporting a wide range of test setups. Compact, lightweight, and highly versatile, this miniature S-type load cell is ideally suited for applications including wire tension monitoring, button actuation testing, hardness measurement, robotics, pull-out/pull-off tests, automated machinery, force gauges, and industrial process control.

For specialized needs, LCS Tech Co., Limited provides customized versions of the LCS03, including non-standard capacities, dimensions, bridge resistance, or output configurations, even in low-volume orders. With over a decade of experience in load cell design and manufacturing, the LCS03 force sensing load cell stands out as a trusted solution for precision, repeatability, and long-term reliability.
