What is a Multi-Axis Load Cell?

A multi-axis load cell is a precision force measurement device designed to detect loads acting in more than one direction with a single sensing unit. Unlike conventional single-axis sensors, it can capture simultaneous force components and provide engineers with a more complete understanding of load distribution, mechanical interaction, and structural behavior. This makes multi-directional force measurement valuable in robotics, rehabilitation equipment, automotive testing, aerospace research, medical devices, and advanced laboratory applications.

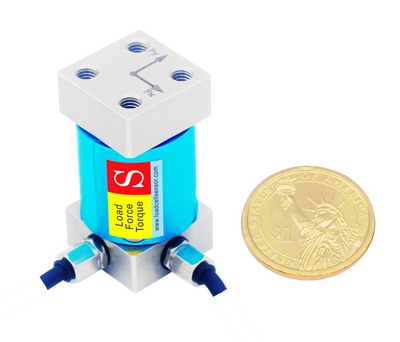

LCS offers several configurations for multi-component force measurement. A 3-axis force sensor can measure forces along the Fx, Fy, and Fz axes, providing three-dimensional load data for systems that require accurate force analysis in multiple directions. Depending on the mechanical configuration, two-axis models can measure Fx and Fy, or other combinations of force and torque. These options allow users to select a suitable sensor according to the required degrees of freedom, installation space, and measurement range.

A triaxial load cell is particularly useful when forces need to be monitored simultaneously along three perpendicular axes. By separating the individual force components, the sensor can support applications such as robotic force control, interaction measurement, structural testing, and motion analysis. For systems requiring compact three-dimensional force detection, a 3d load cell provides an integrated solution while reducing the need for multiple independent sensors and mechanical assemblies.

LCS multi-axis sensors normally provide analog mV/V outputs proportional to the applied loads. For convenient connection with control and data acquisition systems, optional multi-channel signal conditioning can convert the sensor outputs into 0–5 V, 0–10 V, 4–20 mA, RS485, or RS232 signals. Signal processing can also be configured according to application requirements.

In addition to standard models, LCS provides customized multi-axis force sensors for OEM projects and specialized testing systems. Customization options include measuring range, dimensions, mounting interfaces, output configuration, and sensing axes, enabling reliable solutions for demanding multi-directional load measurement applications.
