What is a rod end load cell?

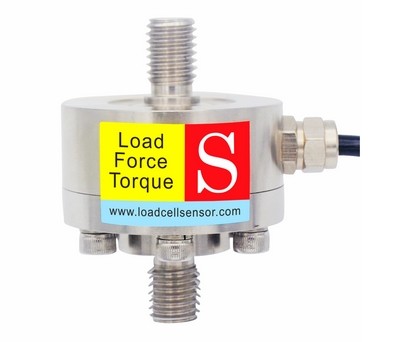

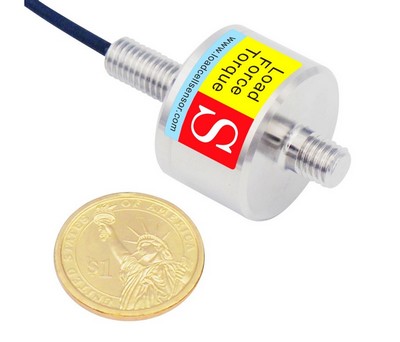

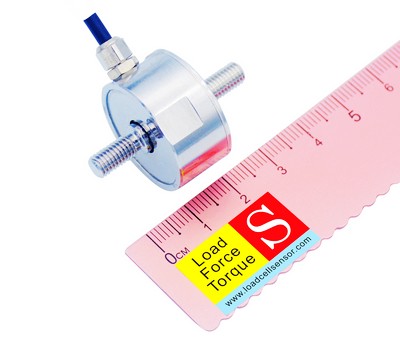

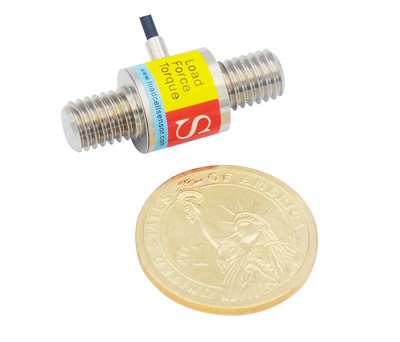

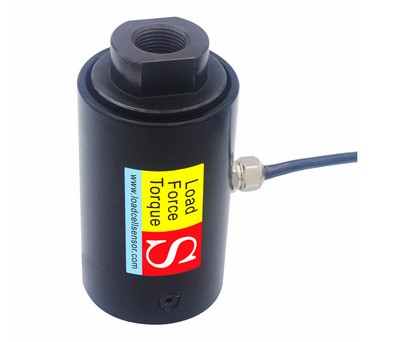

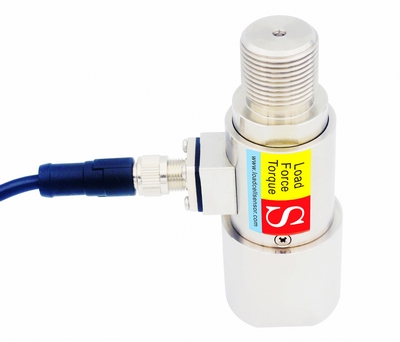

A rod end load cell is a compact force measuring device with male or female threaded connections integrated into one or both ends of the sensor body. This mounting arrangement allows the transducer to be installed directly between mechanical components for accurate in-line load measurement. Its compact design is particularly useful where installation space is limited and the measuring point needs to become part of an existing mechanical linkage, actuator, or structural assembly.

The sensing element is typically machined from stainless steel or another high-strength material selected according to the required capacity and operating conditions. When force is applied, the elastic element undergoes a controlled deformation detected by bonded strain gauges. The strain gauge bridge converts this mechanical deformation into an electrical output proportional to the applied load, allowing the signal to be processed by an indicator, amplifier, PLC, or data acquisition system.

A threaded in-line load cell is suitable for applications requiring direct force measurement along the axis of a machine component. Depending on the design, it can be used for static monitoring, cyclic loading, or dynamic testing. Typical applications include hydraulic and pneumatic cylinders, robotic systems, industrial automation equipment, actuator thrust measurement, automotive testing, structural evaluation, and general research applications.

The threaded mounting design also offers flexibility when selecting mechanical connections. Different thread sizes and configurations can be provided to match surrounding equipment, while cable outlets may be positioned at the side, bottom, or through the center of the threaded section. This helps simplify installation in compact assemblies and supports customized sensor integration.

As a tension and compression load cell, the transducer can measure force in both pull and push directions within its rated range. This makes it a practical solution when bidirectional force monitoring is required. In many testing and automation systems, the same device can therefore function as a push pull force sensor during changing load conditions.

LCS supplies rod end force sensors with capacities from 2 kg to 100 ton (20 N to 1000 kN) and thread sizes from M4 to M100. Custom options are available for dimensions, capacity, materials, mounting details, cable routing, and electrical specifications, providing flexible rod end load cell solutions for OEM and specialized force measurement applications.
